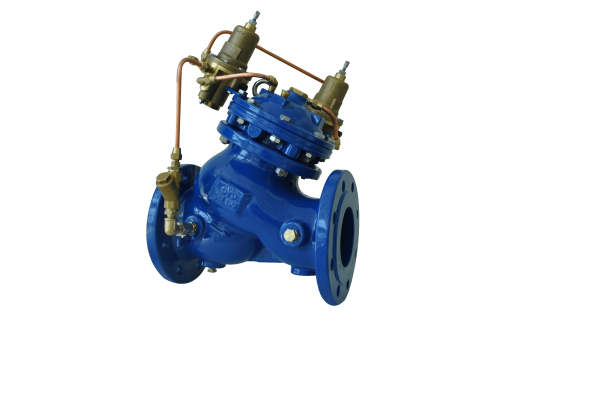

Surge Anticipating

Abrupt pump stopping is followed by a pressure drop as the water column continues traveling along the line.

The returning column hits the closed pump check valve, creating a high pressure surge wave, which travels at up to 4 Mach.

Eliminating such surge requires anticipation and pre-action.

Surge Anticipating Valves react to the pressure drop, accepting the returning column while already open, thus eliminating the surge.

Nominal Size
DN40-900
Nominal Pressure
PN10-40
Face to Face
Body Material Options
Ductile Iron
Carbon Steel
Stainless Steel
Nickel Aluminum Bronze
Accessories
Flange Standards
EN 1092/2
BS 4504
BS10E
ANSI
