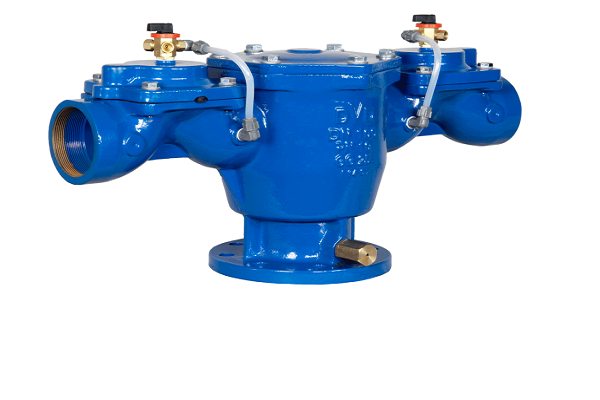

The outlets of the H Type Irrigation Hydrant have control valves that work with hydraulic principles. This feature allows the user to open or close the hydrant on-site by a small two-way valve or remotely by optional solenoid valves.
Hydrants have an automatic drainage valve to bleed the body when the hydrant is closed, to prevent frost damages.
Pressure regulator that is inside the body provides constant pressure, and flow limiters on the outlets provide constant flow rate to the farmer. One or two outlet options are available, enabling supply to more than one farmer from a single hydrant.
Nominal Size
DN100 x 80
Nominal Pressure
PN10-16
Face to Face
-
Body Material Options
Ductile Iron
Accessories
Pressure Regulator
Flow Limiter
Ultrasonic Watermeter
Inline Filter
Threaded / Ball Valve / Quick Coupling Connection
Short / Long Type
1x2 Outlet Options
Flange Standards
EN 1092/2
