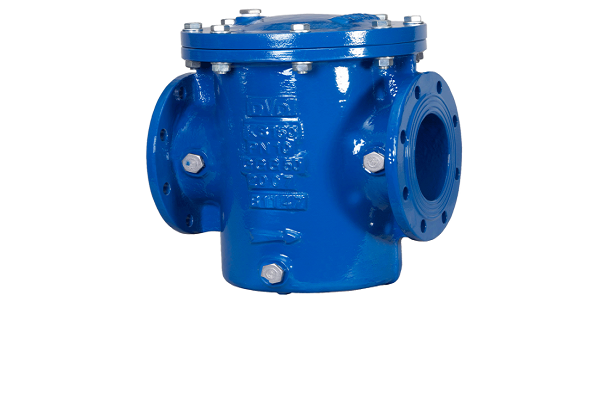

Basket Type Strainers are installed to protect system appliances, such as: pumps, flowmeters, control valves or regulating devices.
The main function is to remove foreign matter like leaves, sticks or stones from the pipelines. Foreign particles that can harm crucial appliances in the system are stuck in the filter of the strainer, and the user can check the blockage of the filter by using monometer connections.
In case of a situation where the differential pressure reading is high, the blow-off port is used to remove entrapped debris at the bottom of the body.
Due to its design, Basket Type Strainers feature much bigger trap capacity compared to other types of strainers. Furthermore, service from the top cover enable a more shallow Valve Chamber, thereby decreasing the overall cost of the installation.
Nominal Size
DN100-DN1600
Nominal Pressure
PN10-40
Face to face
-
Body Material Options
Ductile Iron
Carbon Steel
Stainless Steel
Nickel Aluminum Bronze
Accessories
Davit Arm
Manometer Connections
Different Mesh
Flange Standards
EN 1092/2
BS 4504
BS10E
ANSI
