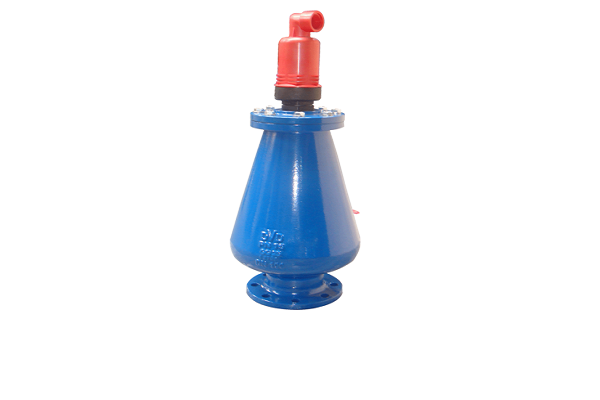

Air Release & Vacuum Valves for Sewage are designed to perform three functions in a single body for use in wastewater/ sewage systems:
1. Venting of large volumes of air on the start-up of the system, while pipelines are filled.
2. Intake of large volumes of air on shut-off of the system, while pipelines are being drained.
3. Discharge of pressurized air pockets during the operation.
Due to its special sealing mechanism, the air valve does not get plugged and can operate in liquids with particles.
Nominal Size
DN50-DN200
Nominal Pressure
PN10-25
Face to Face
-
Body Material Options
Ductile Iron
Stainless Steel
Accessories
Non-Slam Closure
Flange Standards
EN 1092/2
BS 4504
BS10E
ANSI
