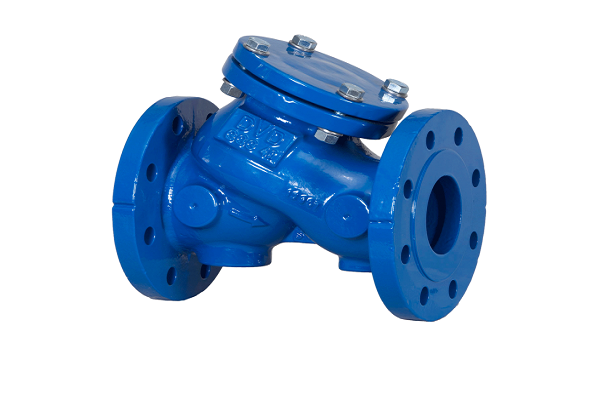

Lift Check Valves has a disc that lifts up off its seat by higher inlet pressure. When the inlet pressure drops, the disc is closed before the back-flow reaches to the valve, enabling non-slam & drip tight closure.
It has a relatively short valve disc travel resulting in an immediate valve disc closing on no flow conditions, minimizing water hammer and surge conditions.
Lift Check Valve has a center-guided, spring loaded valve disc with a resilient seal, acting over a bronze or stainless steel removable valve seat.
It can be furnished with valve position indicator and electrical limit switches and can be serviced without being removed from the pipeline.
Nominal Size
DN50-DN500
Nominal Pressure
PN10-25
Face to Face
-
Body Material Options
Ductile Iron
Carbon Steel
Stainless Steel
Nickel Aluminum Bronze
Accessories
-
Flange Standards
EN 1092/2
BS 4504
BS10E
ANSI
